LAMELLA SYSTEM TK Plate® settler
The application of high load sedimentation technology to traditional sedimentation tanks has become the optimal technological solution to uprate. This is the perfect solution to help fix the problem of technology and economic efficiency for existing water plants that need to uprate and newly built plants.
TK+ takes pride in being at the forefront of researching solutions and providing consultancy on high-load settling technology in the water industry to enhance the efficiency of sedimentation systems in Vietnam and the region.
The TK Plate® settler, developed by TK+, has been granted an exclusive patent by the Intellectual Property Office under the Ministry of Science & Technology for its valuable solution, employing high-load settling plate frames used in water treatment sedimentation tanks. It offers the following characteristics and advantages:
Applications:
- Applicable to both water treatment and wastewater treatment industries.
- Suitable for new construction and plant upgrades.
- Compatible with most conventional settling technologies.
Technological characteristics:

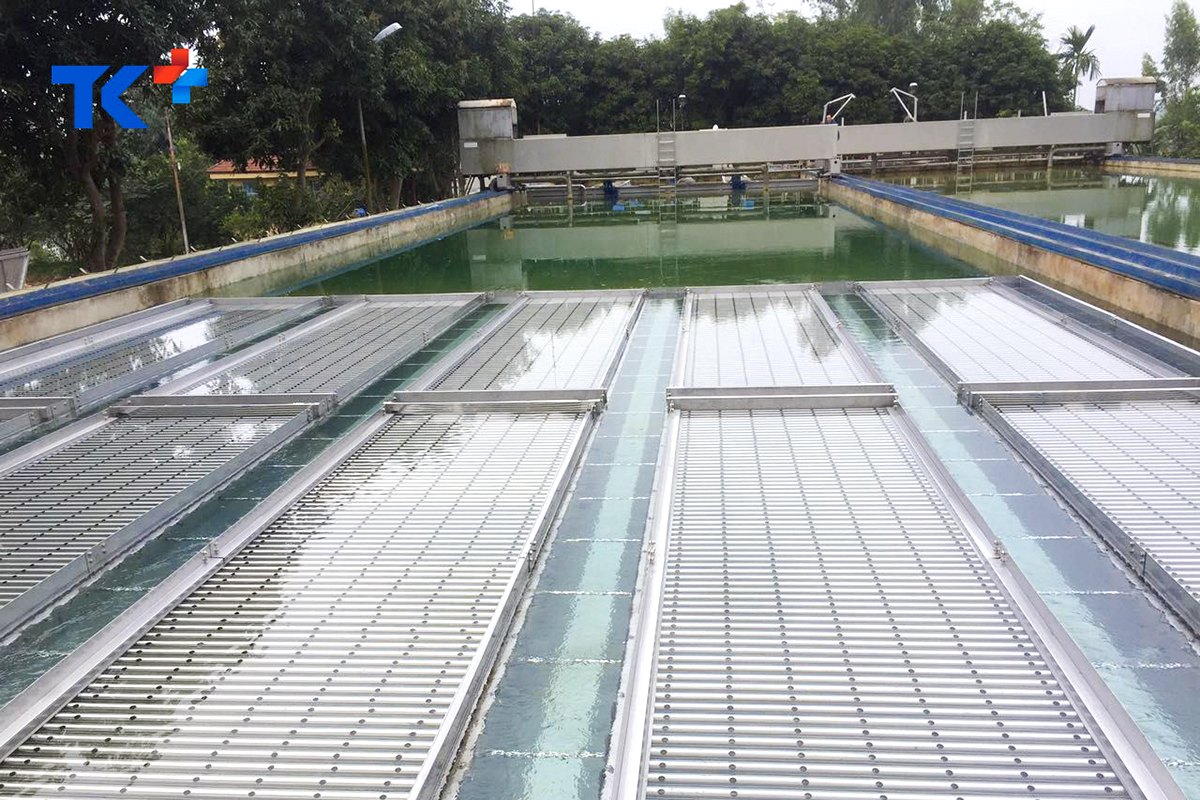

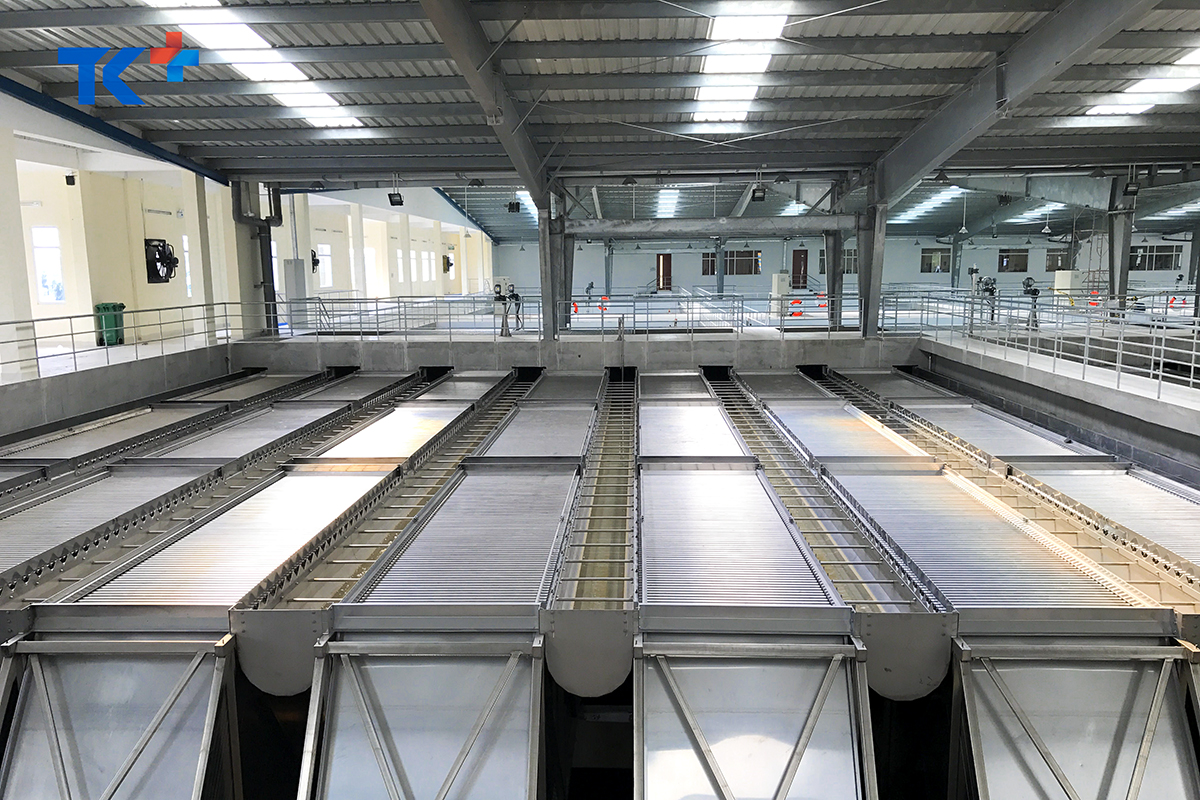

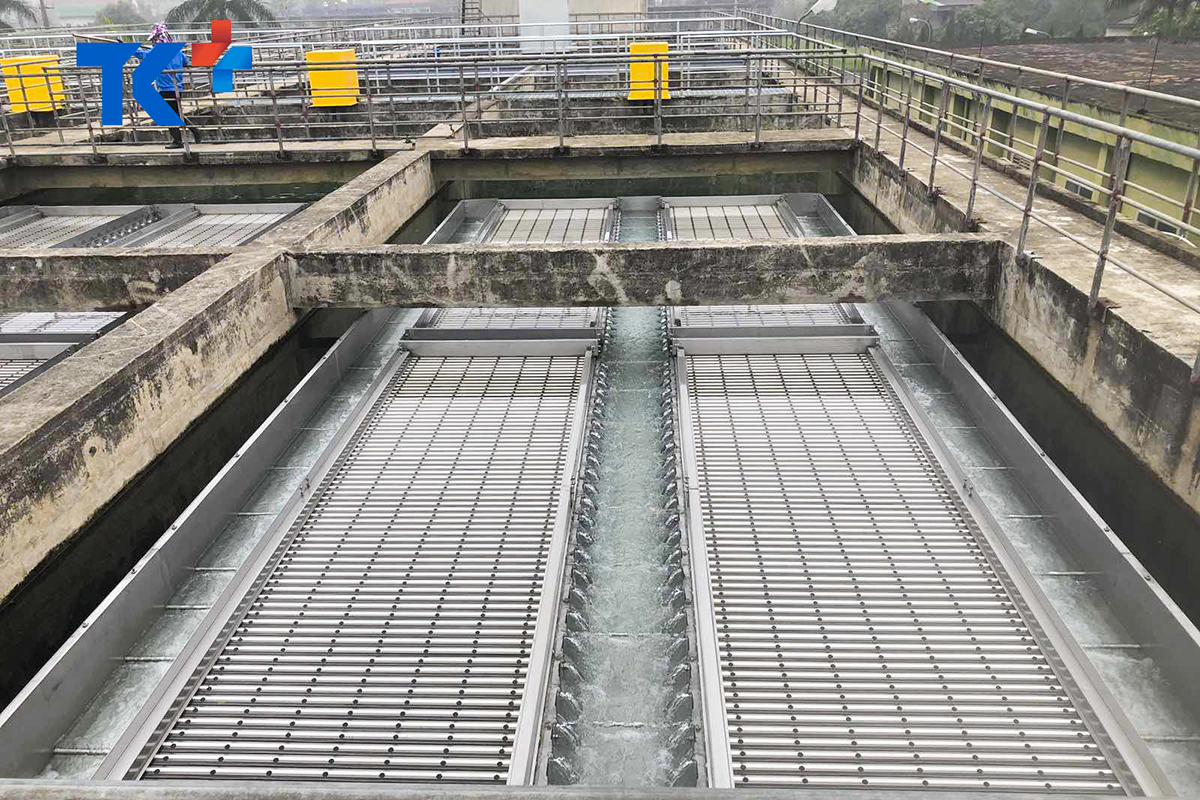

The TK Plate® settler has been extensively researched, tested, and practically installed in numerous water treatment plants, with surface loads of up to 20m3/m2.h.

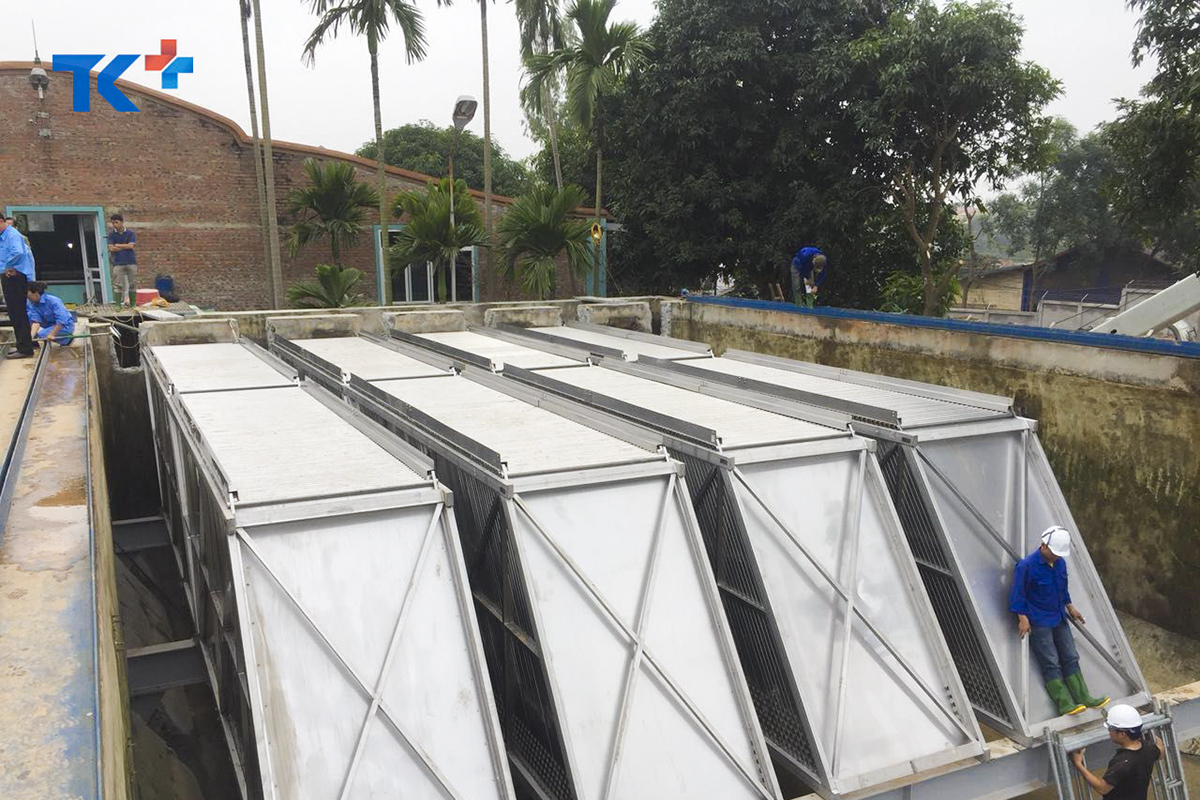

High-load settling plates are calculated and arranged as settling modules to fit the structure and size of existing sedimentation tanks, ensuring maximum exploitable capacity.
Material characteristics:
| Frame: | SS304 |
| End plate: | SS304 |
| Inner plate: | FRP (can be replaced with SS304 or SS316 upon request) |
| Surface water collection pipe: | SS304 |
| Trough: | SS304 |
| Reinforcement details: | SS316 |
| Supporting beams: | Advised according to the settling plate frame system. |
